Wooden Fire Proof Doors

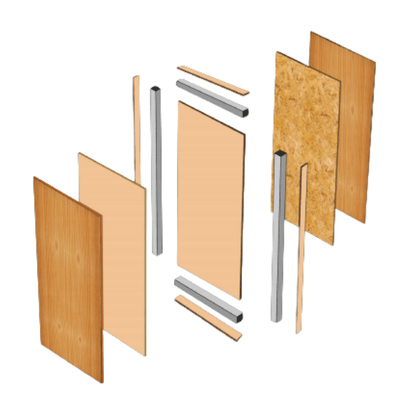

5-ply Construction

ULListed;Meets Positive-Pressure fire ratings:20,45,60,and90-minutes

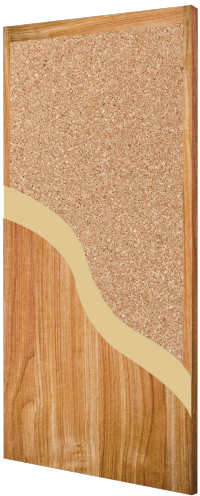

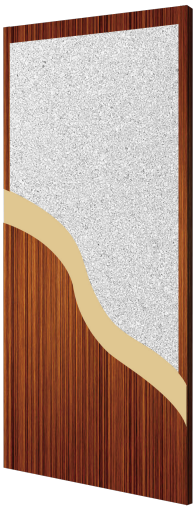

Core -The innermost section of the door which determines its durabilityand performance. Our core types include;Extra Heavy Duty Particleboard, Mineral,and Hollow core

Consult factory for other core type available

Stiles and Rails-are the verticaland horizontal pieces that are bondedaround the core that makes up thedoorassembly.

Face-The outermost layer of awood door,construction which can ba:Wood Veneer.High Pressure PlasticLaminate(P-LAM),or Medium DensityOverlay(MDO)

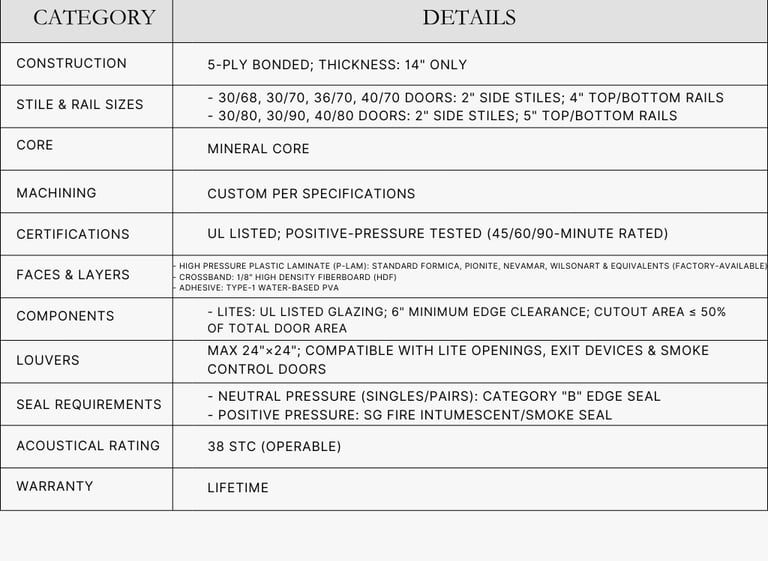

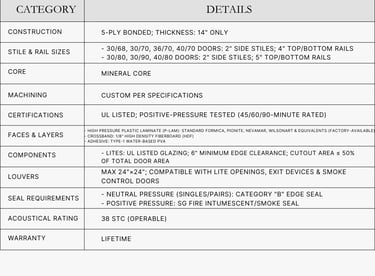

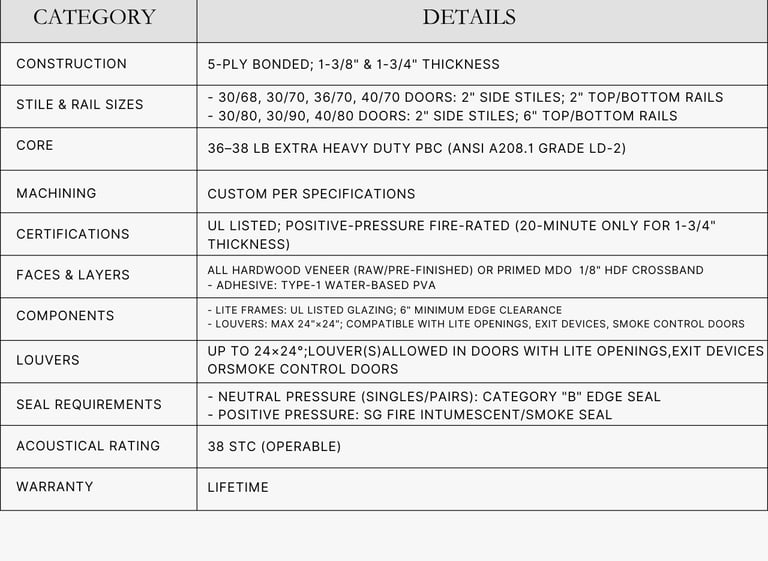

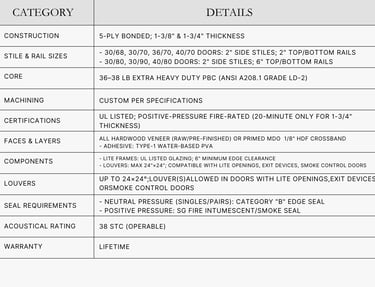

Technical Specification

Laminated Paper

Veneer

PVC Film
